MeshRipple: Structured Autoregressive Generation of Artist-Meshes

Junkai Lin1, Hang Long1, Huipeng Guo1, Jielei Zhang1, Jiayi Yang1, Tianle Guo1, Yang Yang1, Jianwen Li2, Wenxiao Zhang2, Matthias Nießner3, Wei Yang1, †
1Huazhong University of Science and Technology, 2Independent Researcher, 3Technical University of Munich
Paper arXiv Code

MeshRipple generates meshes with high surface fidelity and topological completeness.

Highlight Results

None

Abstract

Meshes serve as a primary representation for 3D assets. Autoregressive mesh generators serialize faces into sequences and train on truncated segments with sliding-window inference to cope with memory limits. However, this mismatch breaks long-range geometric dependencies, producing holes and fragmented components. To address this critical limitation, we introduce MeshRipple, which expands a mesh outward from an active generation frontier, akin to a ripple on a surface.

MeshRipple rests on three key innovations: a frontier-aware BFS tokenization that aligns the generation order with surface topology; an expansive prediction strategy that maintains coherent, connected surface growth; and a sparse-attention global memory that provides an effectively unbounded receptive field to resolve long-range topological dependencies. This integrated design enables MeshRipple to generate meshes with high surface fidelity and topological completeness, outperforming strong recent baselines.

Method

Teaser

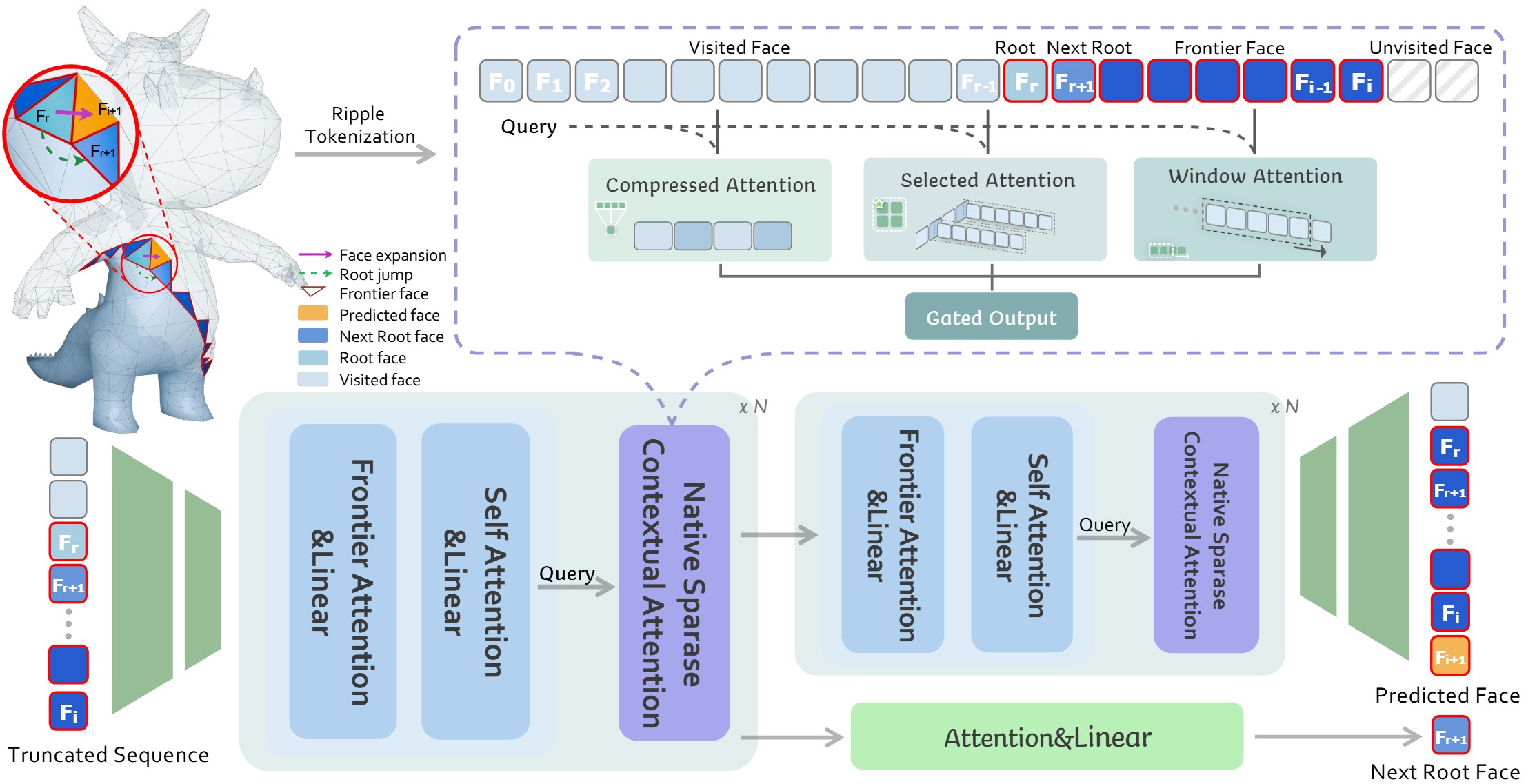

Fig. Overview of MeshRipple. The input mesh is first serialized into a token sequence via Ripple Tokenization, which is then truncated into fixed-length segments as input to a structured autoregressive model. The model employs hourglass layers at both ends to convert between vertex and face tokens. The core consists of a stack of 2 × N identical blocks, each comprising a Frontier-Attention layer, a self-attention layer, a cross-attention layer for point-cloud conditioning (omitted for clarity), and a Native Sparse Contextual Attention layer that attends to the full mesh sequence under a causal mask. The middle hidden states are additionally fed into a lightweight head to predict the next root face to expand.

Our framework aims to generate large, structurally coherent artist-style meshes under truncated autoregressive (AR) training. It consists of two key components: (i) Ripple Tokenization, which couples a breadth-first face ordering with an explicit dynamically maintained frontier, such that the structurally relevant context for the next face prediction is concentrated near the tail of the sequence; and (ii) an structured autoregressive transformer with frontier attention and a lightweight context attention that jointly predicts the next face attached to current root face, and the subsequent root face on the frontier to expand.

Tokenizer

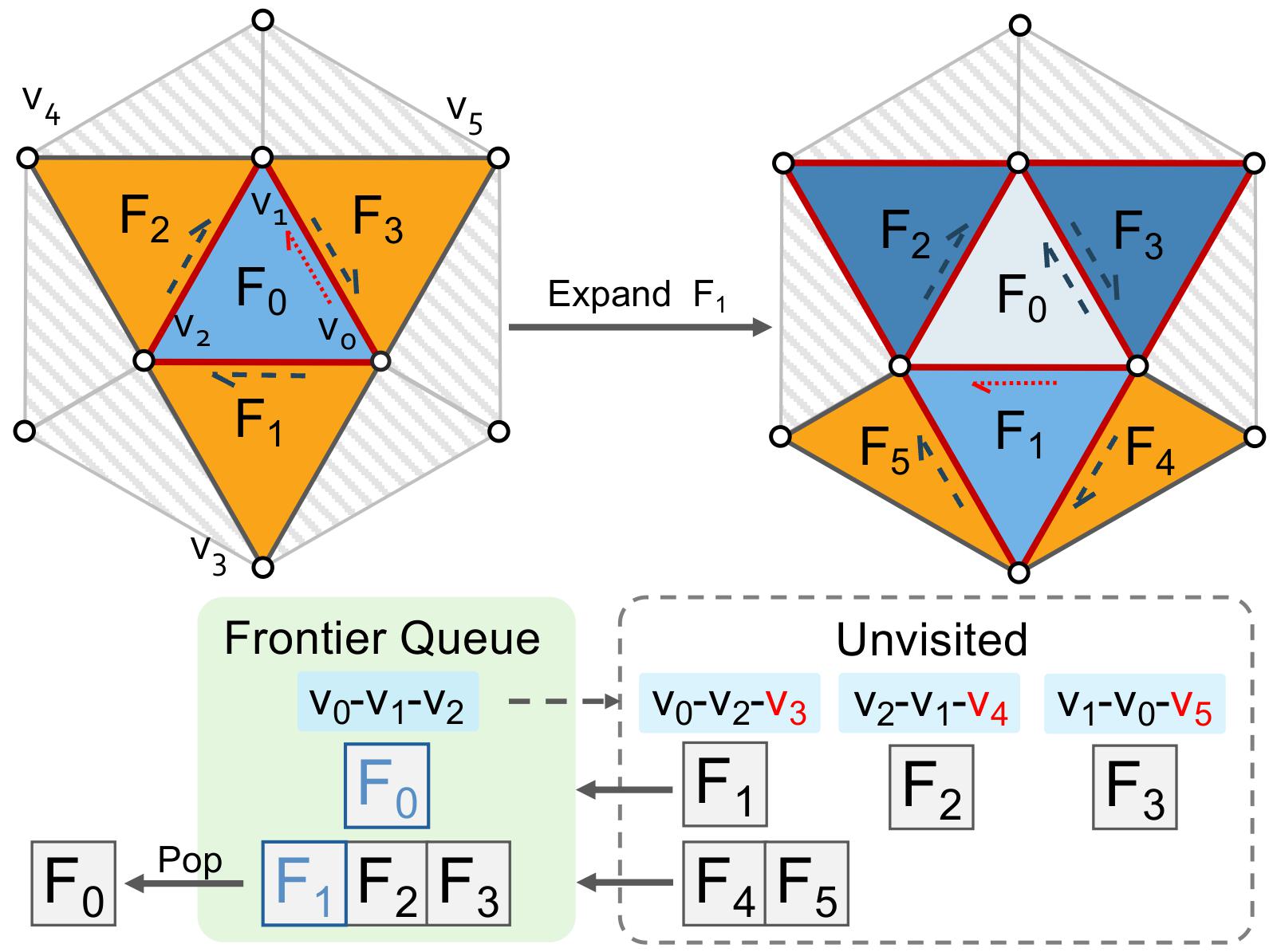

Illustration of Ripple Tokenization. At each step, the current root face expands following the counterclockwise half-edge order. Faces that still have unvisited neighbors remain in the FIFO frontier queue; once all neighbors are visited, the face is popped from the queue.

Comparison

Cmp

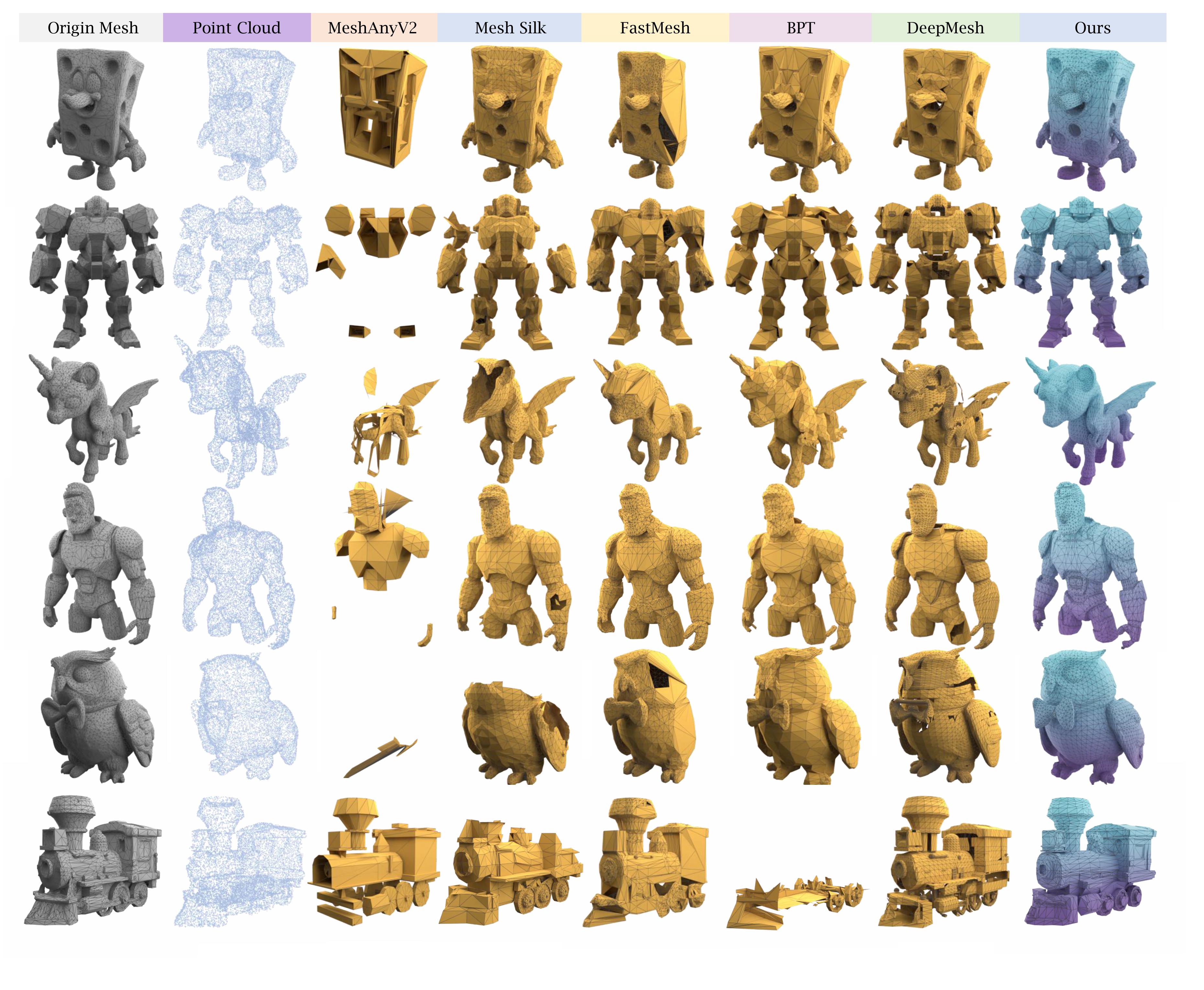

Qualitative comparison of point cloud-conditioned generation between MeshRipple and baselines. Baselines inevitably produce broken surfaces and holes, whereas MeshRipple yields more complete and coherent geometries.

Room Generation Results

Floorplan Conditioned Generation

Floorplan

Room Shell

Furniture Inserted

Room Generation Details

Process of Room Generation

Interior Details of Room

BibTeX

@misc{lin2025meshripplestructuredautoregressivegeneration,
      title={MeshRipple: Structured Autoregressive Generation of Artist-Meshes},
      author={Junkai Lin and Hang Long and Huipeng Guo and Jielei Zhang and JiaYi Yang and Tianle Guo and Yang Yang and Jianwen Li and Wenxiao Zhang and Matthias Nießner and Wei Yang},
      year={2025},
      eprint={2512.07514},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2512.07514},
}
